Products / NEO
Handheld · PortableIP65
NEO

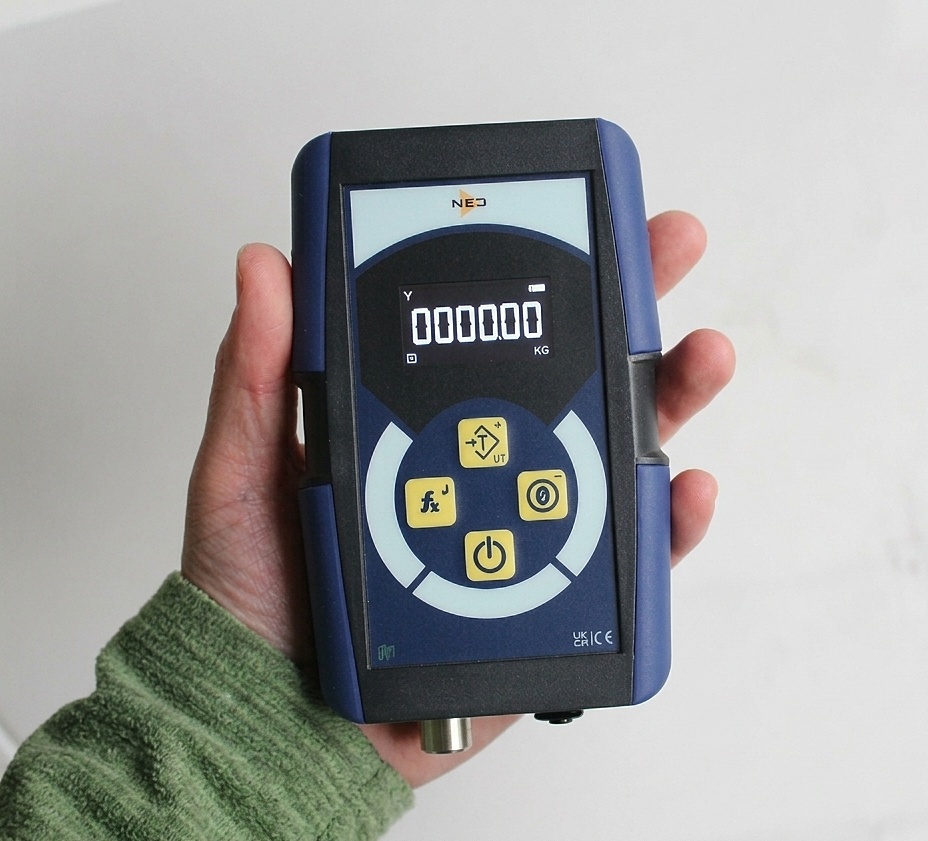

A lightweight, handheld loadcell controller built for the field — clear OLED display, sub-GHz wireless and up to 60 hours of constant use on a single charge. Built for lifting applications, stress testing and portable loadcell monitoring.
Contact for pricing.
Specification

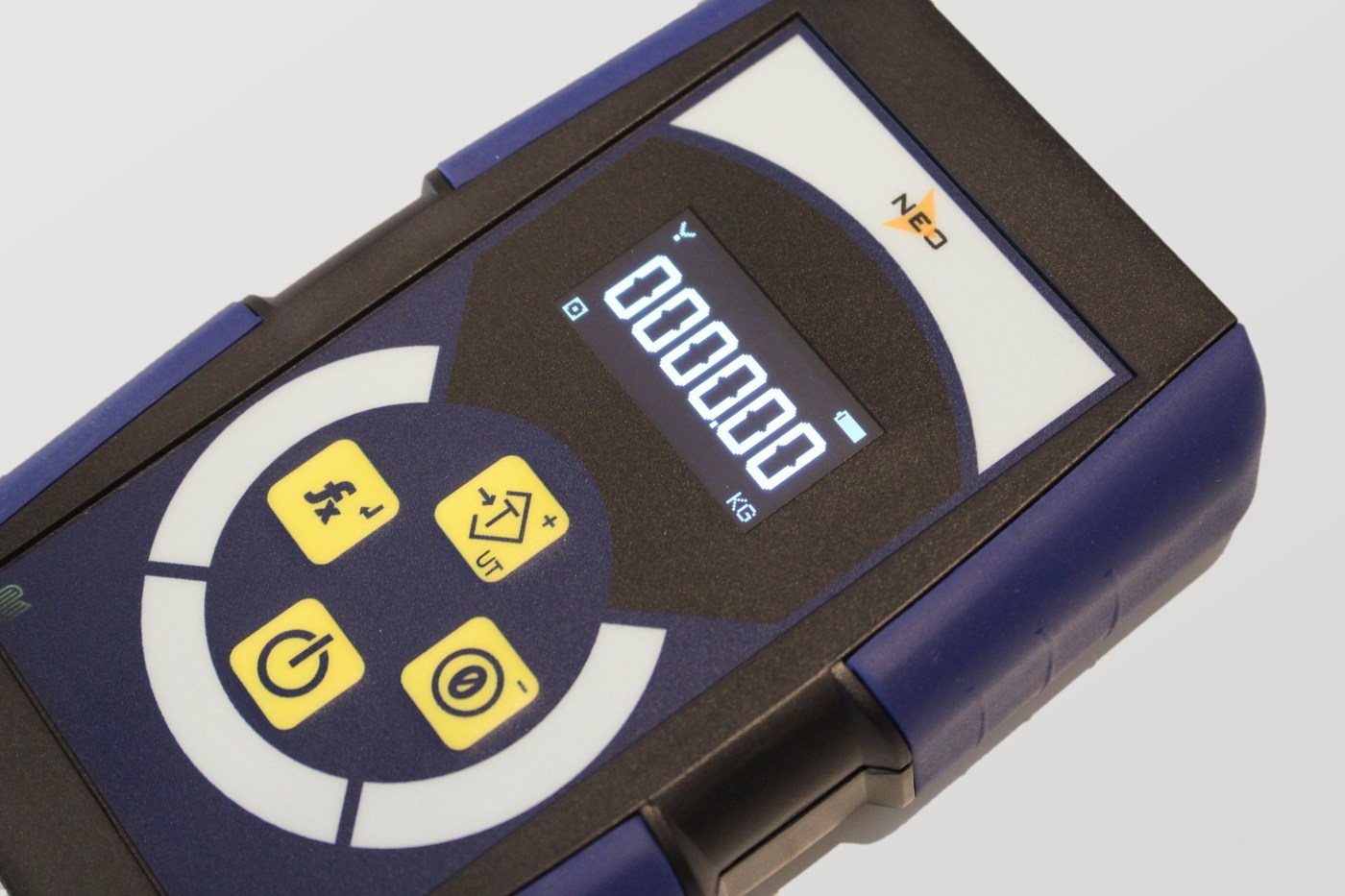

DisplayOLED
Enclosure145 × 95 × 35mm, high-impact ABS, UL94-V0
Ingress protectionIP65
AssemblyScrewless, four soft-grip corners
WirelessSub-GHz license-free ISM band radio
Wired interfaceUSB streaming, USB bootloader
Load cell excitation3.3V DC
Battery lifeUp to 60 hours constant use
Power options2× AA batteries or Li-Polymer rechargeable
Operating temperature−10°C to +40°C
CertificationsCE, UKCA
Applications
Lifting applications
Handheld readout for crane and hoist load monitoring.
Stress testing
Real-time load readings for rig and pull testing.
Portable loadcell monitoring
Wireless or USB streaming from a single loadcell connection, on the bench or in the field.
UK manufacture of digital weight indication for industry.
